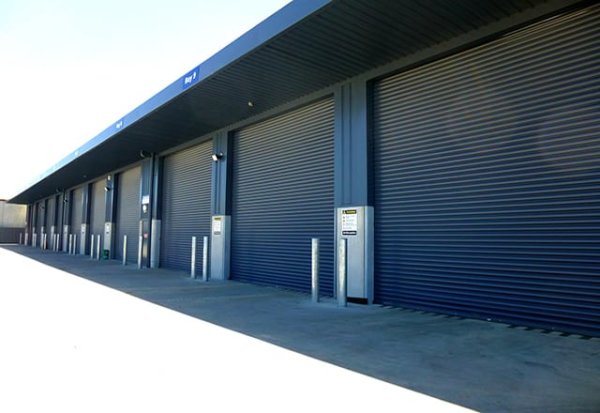

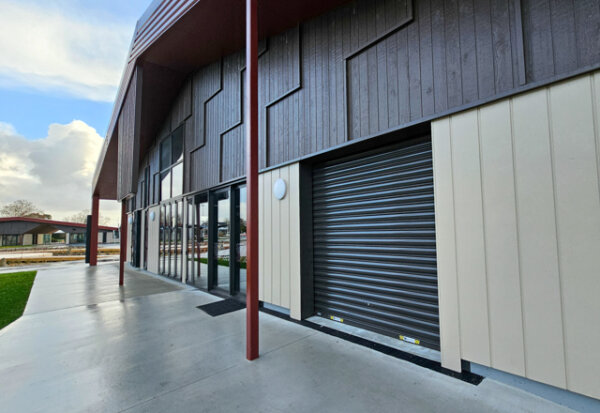

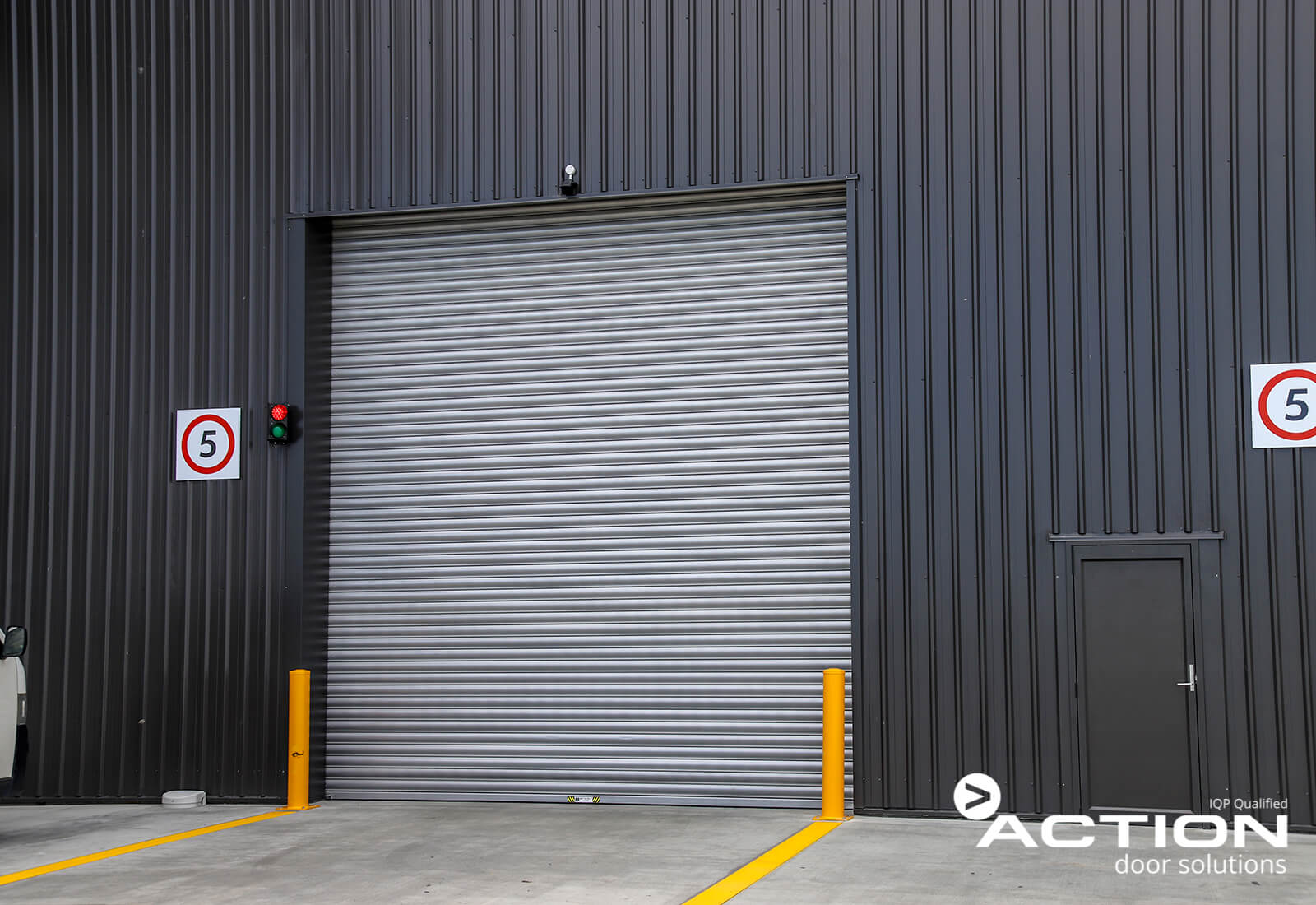

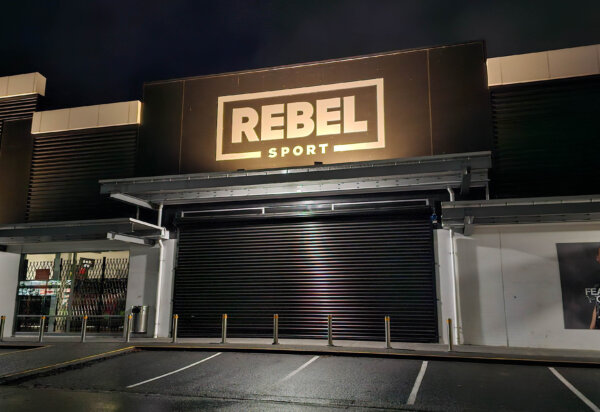

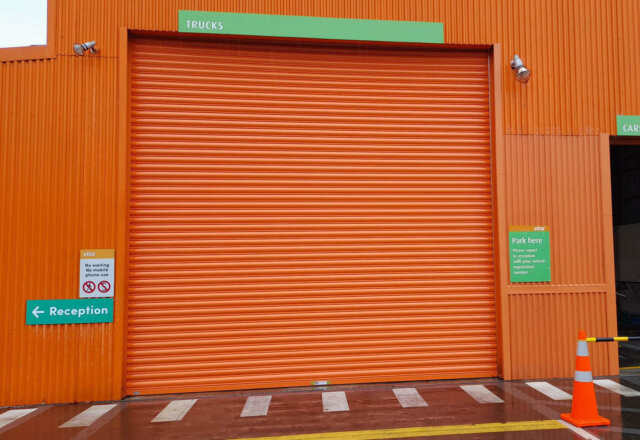

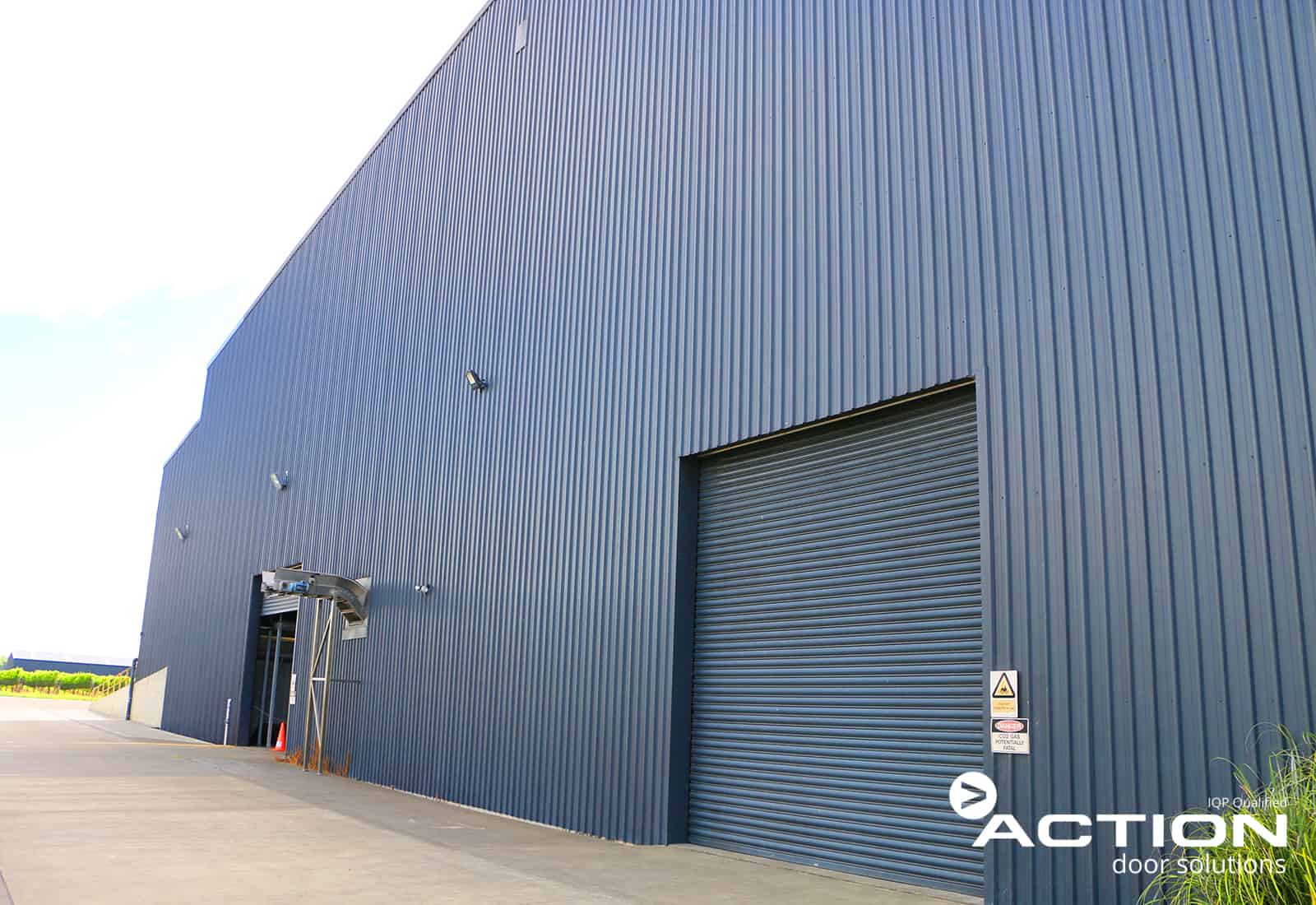

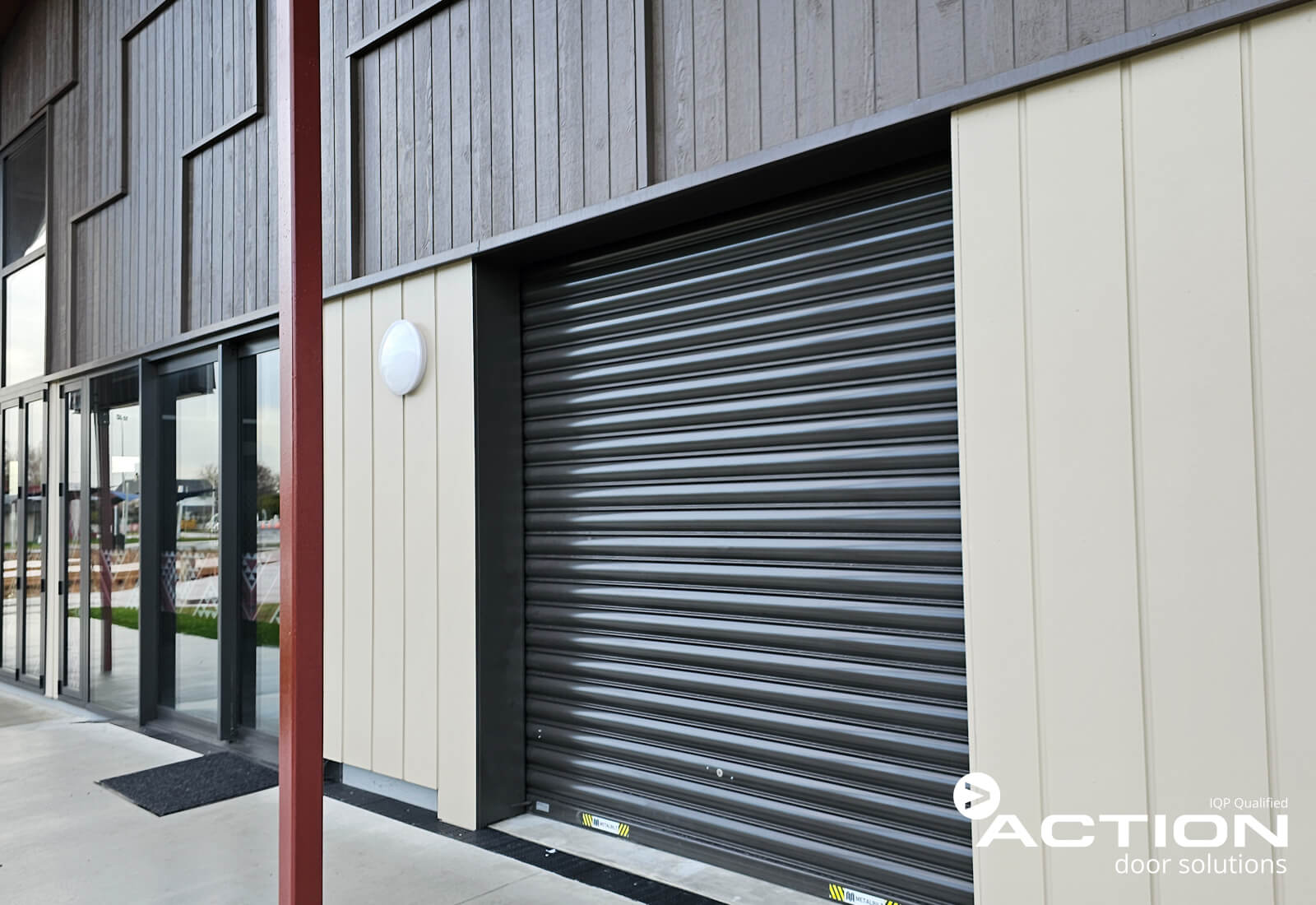

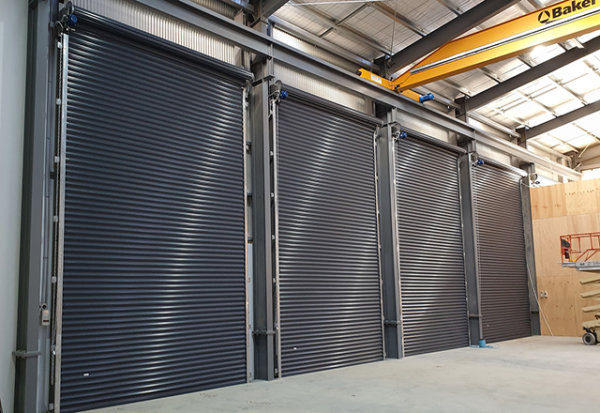

Roller Shutter Doors
A Roller Shutter Door is the most functional, robust & hardwearing door suited for many applications from warehouses, your local car dealer, factories to name a few. If damaged the slats can individually be replaced saving dollars and downtime. Suited for high wind applications and securing your property
Roller Shutter Door Brochure
Installation Requirements
- Minimum Headroom: 500mm
- Motorside Side-room: 260mm
- Non-Motorside Side-Room: 200mm

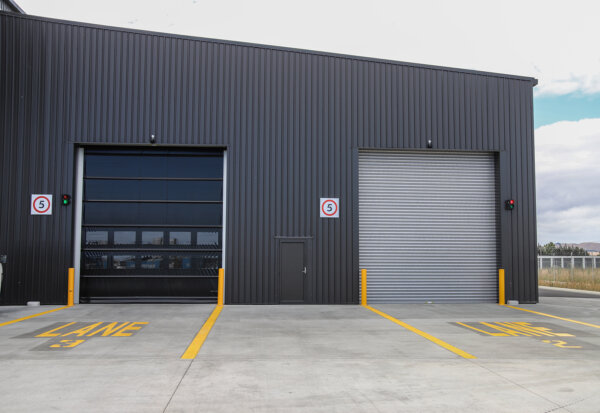

Piggyback Rapid Doors/Roller Shutters
The ENVICO door range is ideally suited when combining with other door types for exterior applications. This allows the Maxim to be safely mounted in-front of a conventional steel roller door. This is ideal for exterior applications where both security and productivity are important
Features/Benefits
0.8mm Individual Slats
Curtains are constructed from individually roll formed replaceable interlocking slats for extra strength
- 0.8mm Steel Slat Thickness
- Galvanized Finish

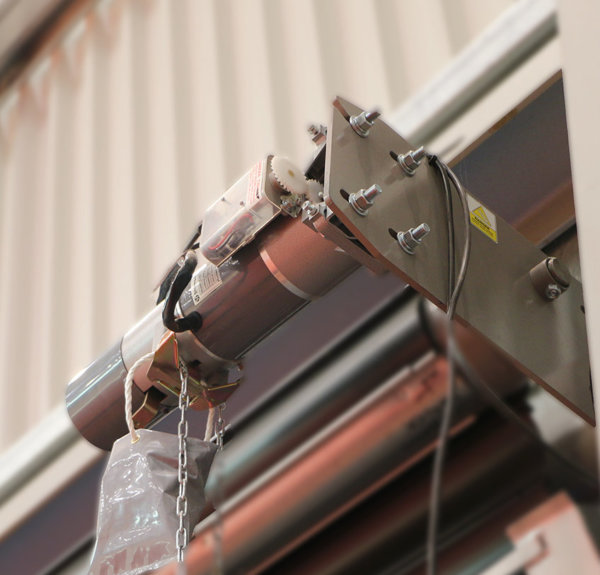

Operation Options
Depending on the Size of the Door/Power Supply Onsite there are a range of Operation Options to suit each specific installation
- 3 Phs Motor & Gearbox
- 1 Phs LCM (Low Cycle Motor)
- Manual Operation
- Manual Hand Chain Operation

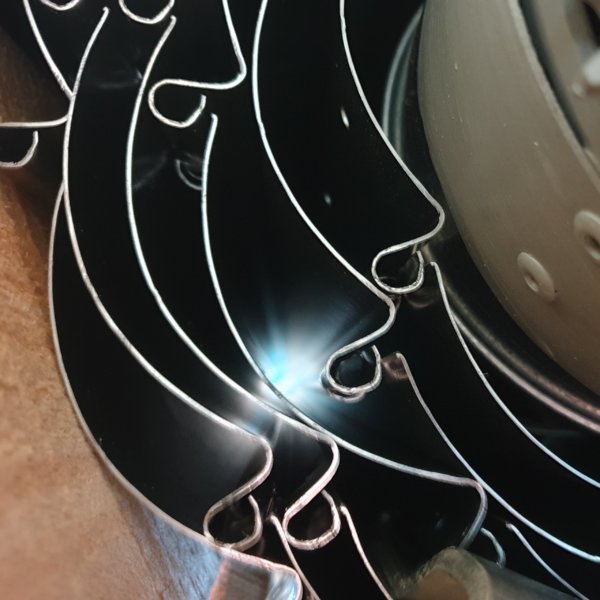

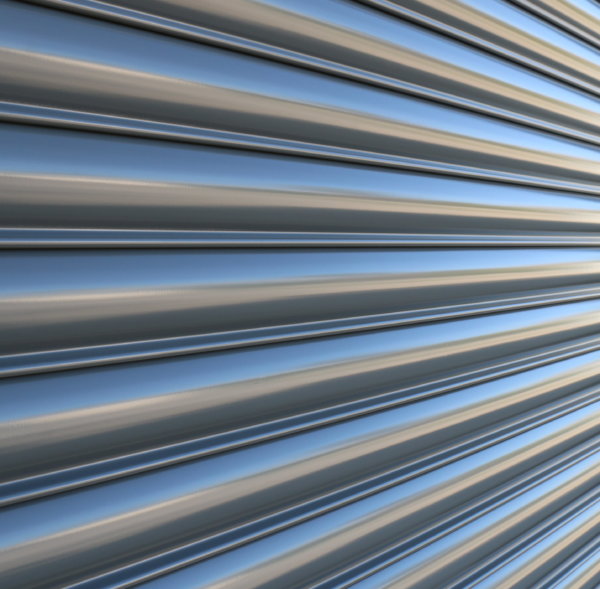

Interlocked Slats
Due to the Steel Slats being interlocked together to form the curtain, this means less damage and buckling will occur. If the door happens to be damaged individual slats can be replaced

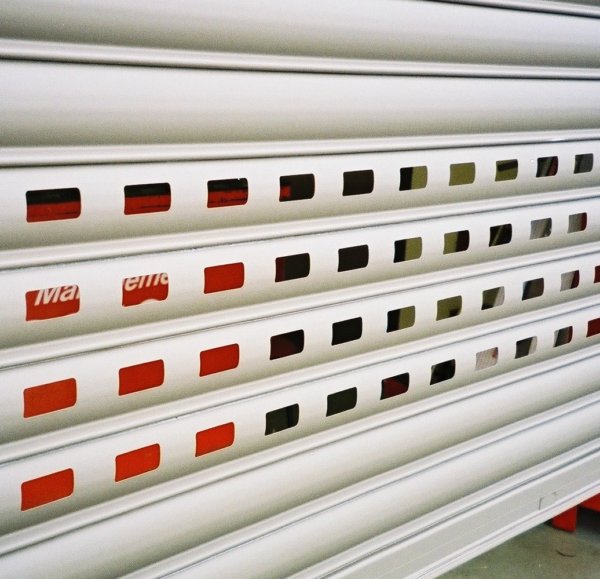

Ventilation Option
Ventilated or perforated slat options are available on request
- Vent Hole Size: 32mm H x 72mm W
Duralloy® Powercoating Options
Standard finish is Galvanized but an extensive range of Dulux Duralloy® Powdercoating options are available from the Dulux Duralloy Range
Custom Made
Roller Shutter Doors are custom manufactured to fit the size of your door opening
- Maximum Height: 7.5 metres
- Maximum Width: 7.25 metres

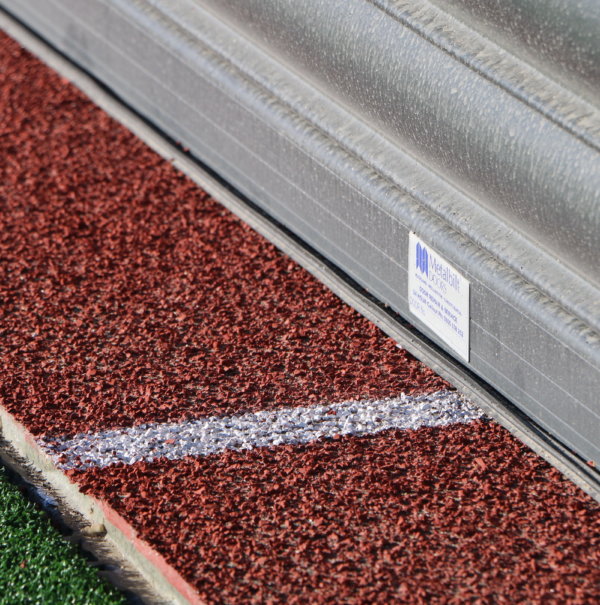

Extruded Aluminium Bottom Rail & Rubber Seal
Each Roller Shutter has a extruded aluminium Bottom Rail for additional strength with Neoprene weather seal to prevent water and dust intake underneath the door
Guides Options
Subject to the Size of the Door, Wind Conditions & Security Factors
- Standard 50mm Guides

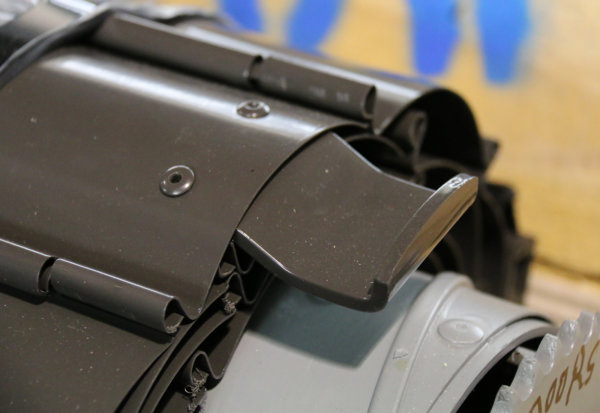

- 90mm Windlocked Guides (High Wind/Security Applications)
