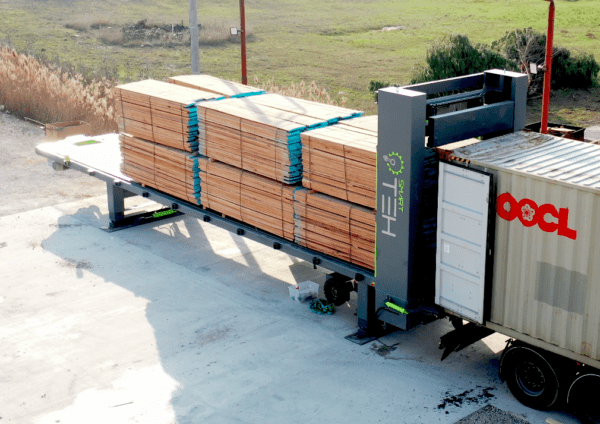

SmartTEH Automated Container Loading

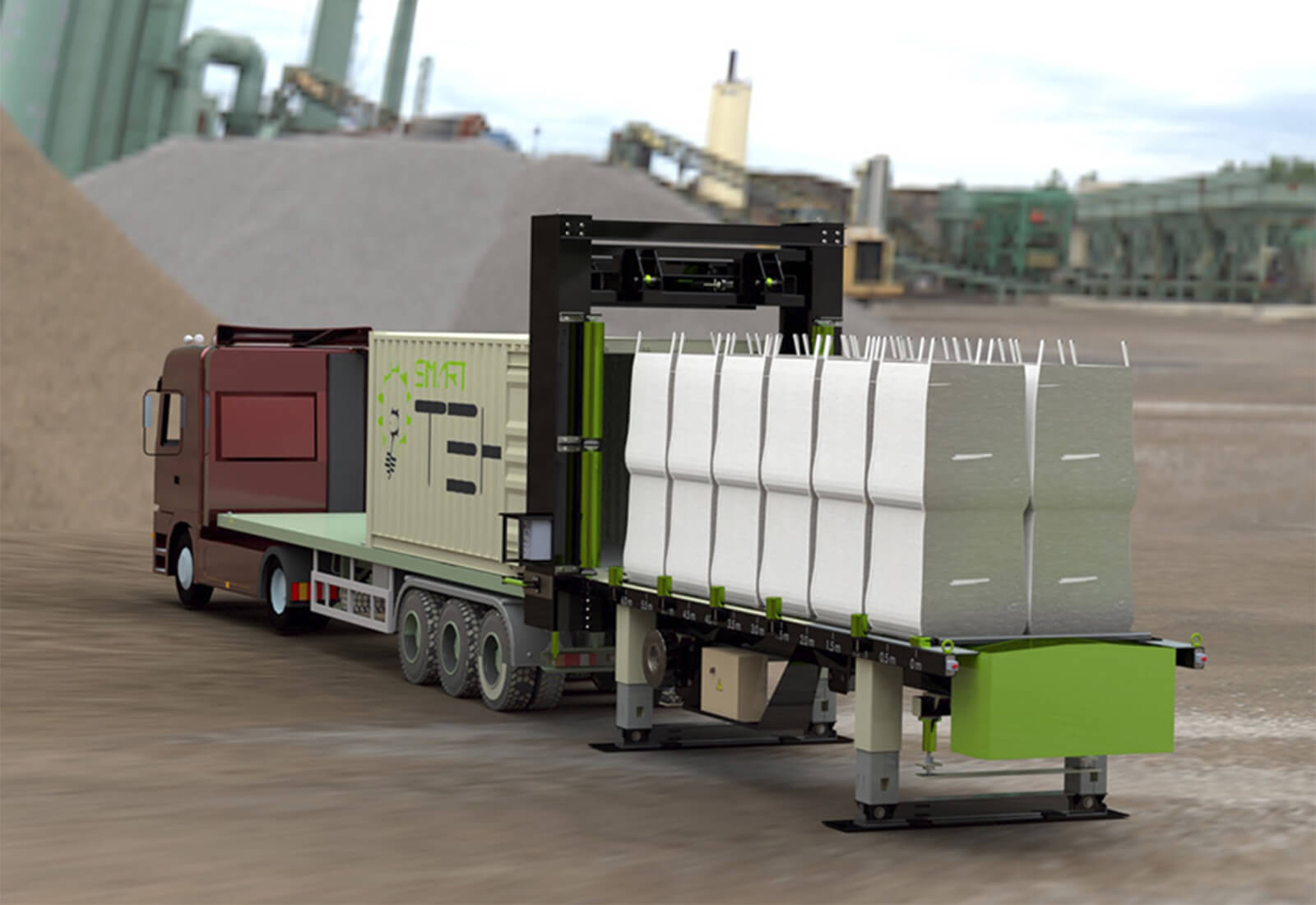

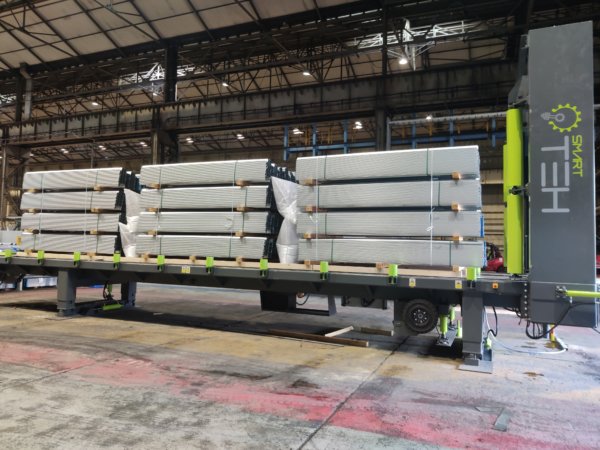

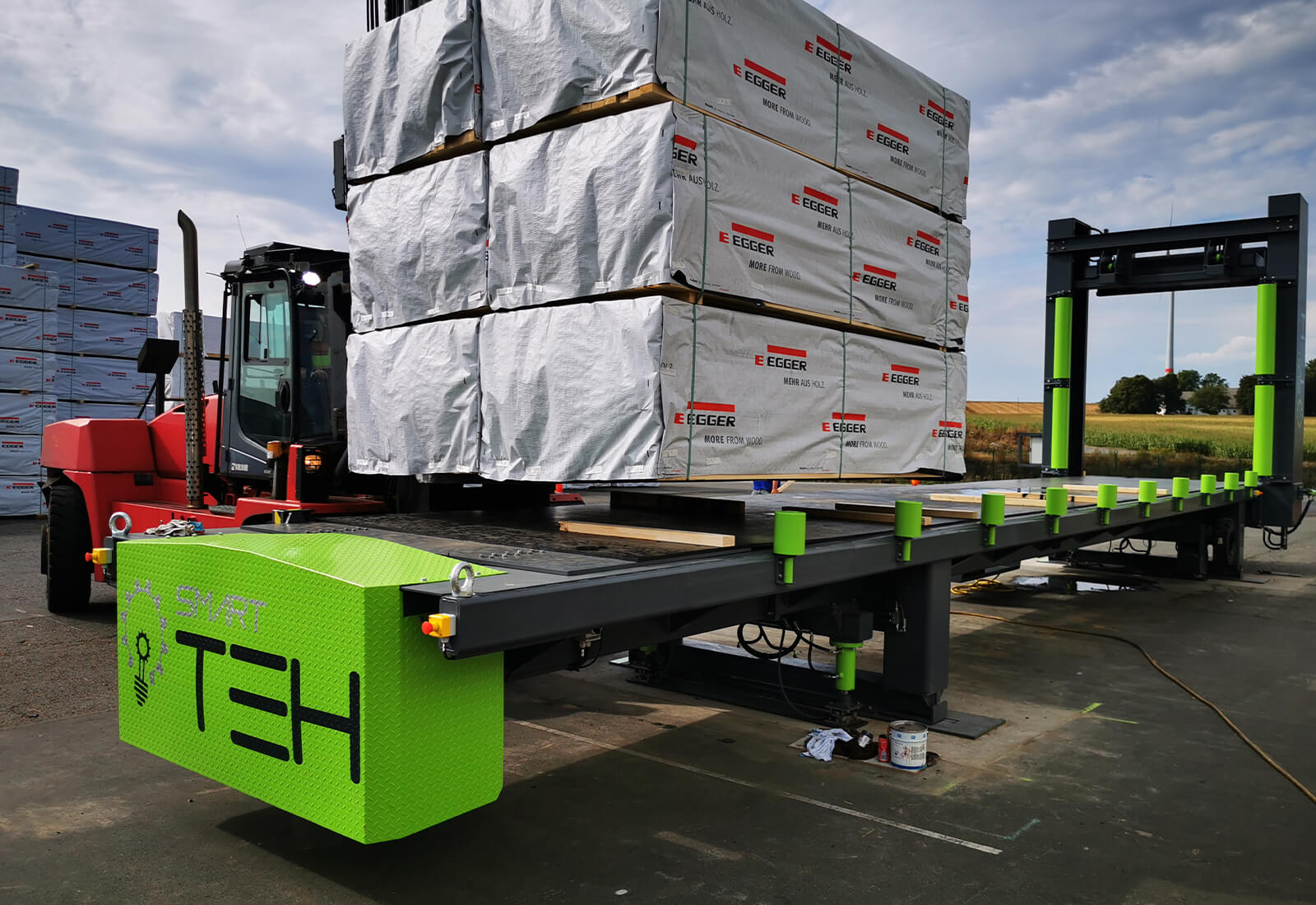

SmartTeh is an Automated Container Loading System designed maximise efficiency when loading cargo into Containers for transportation/export. Suitable for use within the Timber Export Industry, Metal Industry and any other bulk cargo loading, the automated process is a simple 4 STEP PROCESS to assist the logistics industry with an efficient solution to fitting cargo into containers for export
VIEW IN ACTION
SMARTEH FEATURES

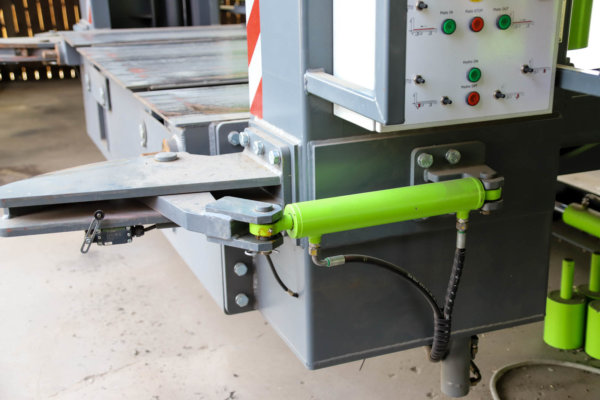

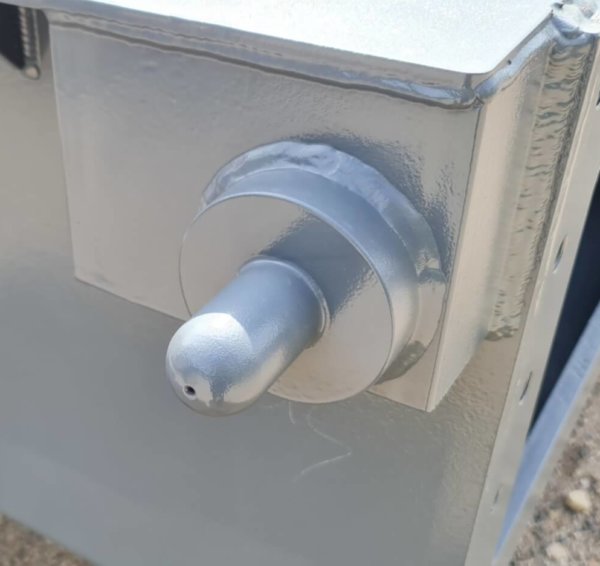

Container Connector Clamps
On Each side of the Loading Platform, Hydraulic Container Clamps are located to ensure the Trailer/Container is held still during the loading process
Side Rollers
On each side of the Loading Platform there are Side Rollers to assist the loading and ensure the product is aligned with the container

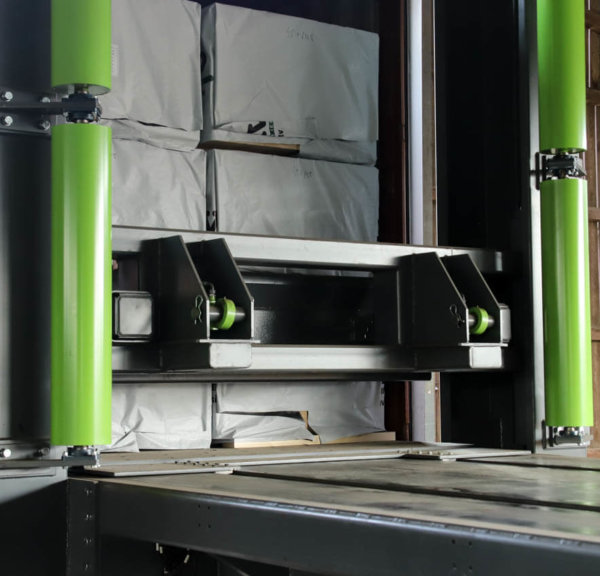

Stopper Plate
The Stopper plate hydraulically extends on completion of loading cargo. This pushes against the cargo when the loading plate is extracting from the container. This can also be used to inch cargo inwards to ensure the container doors can close
Adjustable Legs
Both Ends of the Platform can be adjusted Up/Down to suit different trailer heights. The Platform can also adjust horizontally to correctly line up with a container
Loading Plate

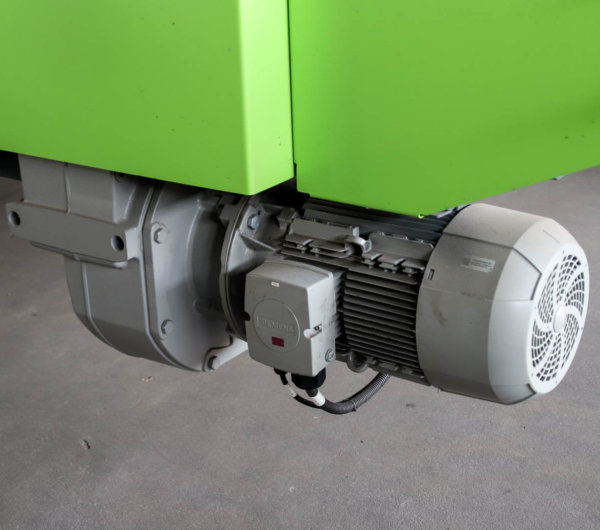

The Loading Plate is operated using a Motor/Gear Box System
Control System

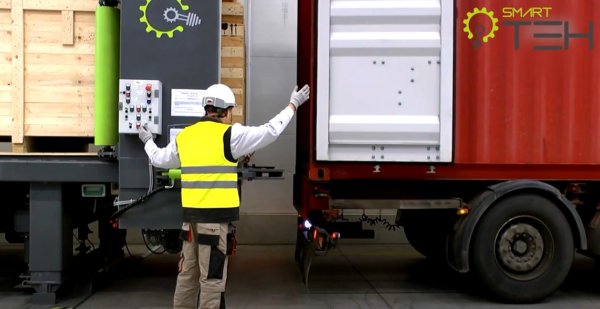

Operated using a single Control System, this ensures safe operation with one person responsible for operating the system

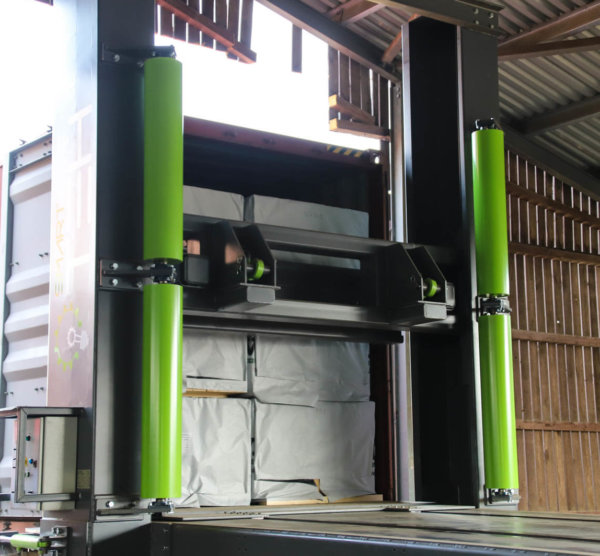

Guiding Rollers
On each side of the SmartTEH platform entrance, large Rollers assist when loading to ensure cargo is not skewed inside
Maximum Load Size
15100mm L x 3700mm H x 2330mm W (Between Rollers)
Maximum Load Weight
30,000 KG

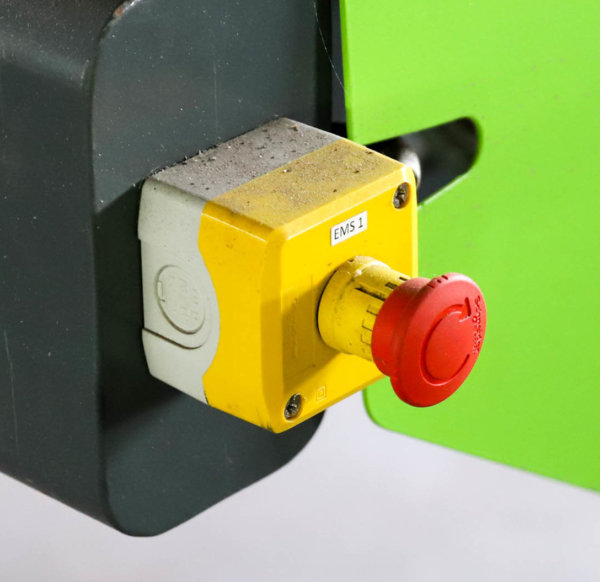

Emergency Stops
Around the Loading Platform, there are a total of 3x Emergency Stop Buttons including on the Controller

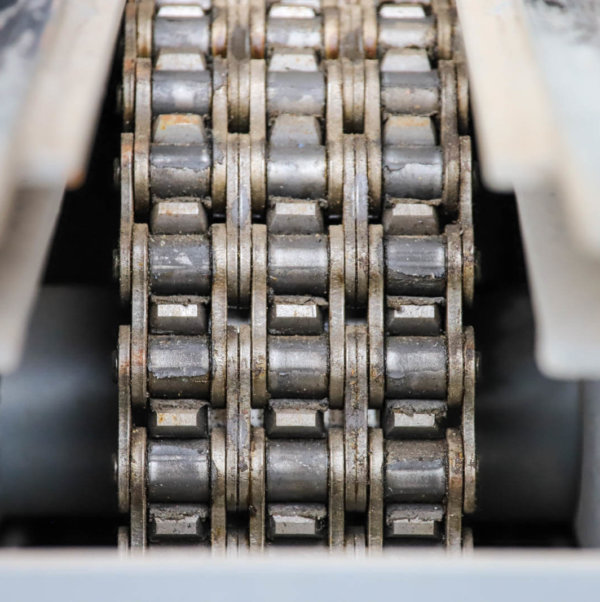

Chain Operated Mechanism

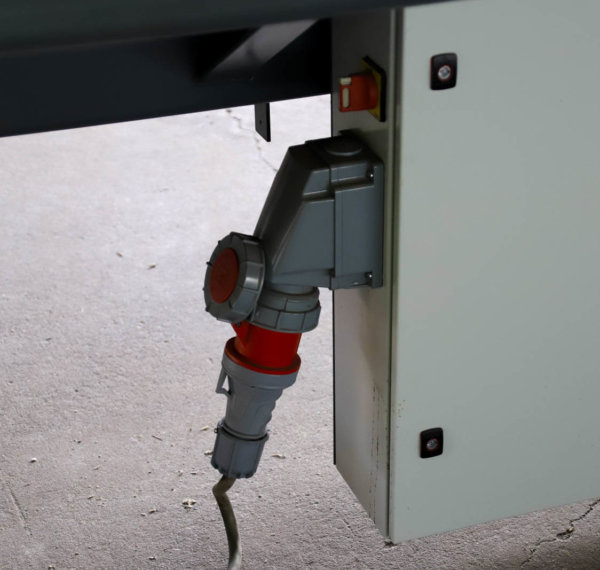

3 PHS Power Supply
BENEFITS OF implementing SMARTEH
Reduced Product Damage from Loading
With SmartTEH eliminating the usual process of forklifts manoeuvring cargo into containers, the risk of damaging products when being forced inwards is removed due to the Automated Loading Process
Cost Savings on Labour
No more Hand Stacking Cargo, or Forklift Loaded Containers with SmartTEH. With Labour Costs on the incline, manual loading processes can be an expensive operation compared to using an Automated System – Less People Involved, Less Expenses
EFFICIENT LOADING

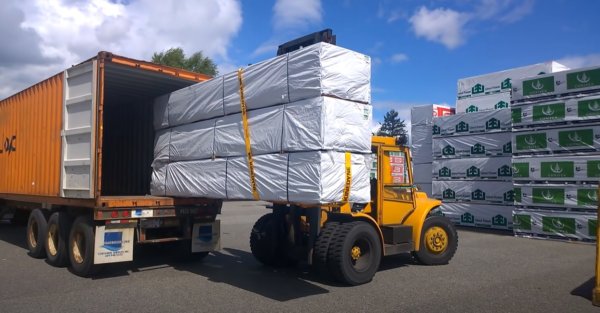

When it comes to long and larger cargo, normally this involves multiple forklifts to awkwardly manoeuvre the product into the container. SmartTEH provides a seamless Automated Loading Process fit for purpose
SPACE MAXIMISATION
Usually loading from one end of the Container, the SmartTEH Automated Loading Plate allows cargo to fill the entire container footprint and height where applicable. The open loading layout on the platform allows for accurate placement of cargo before loading
