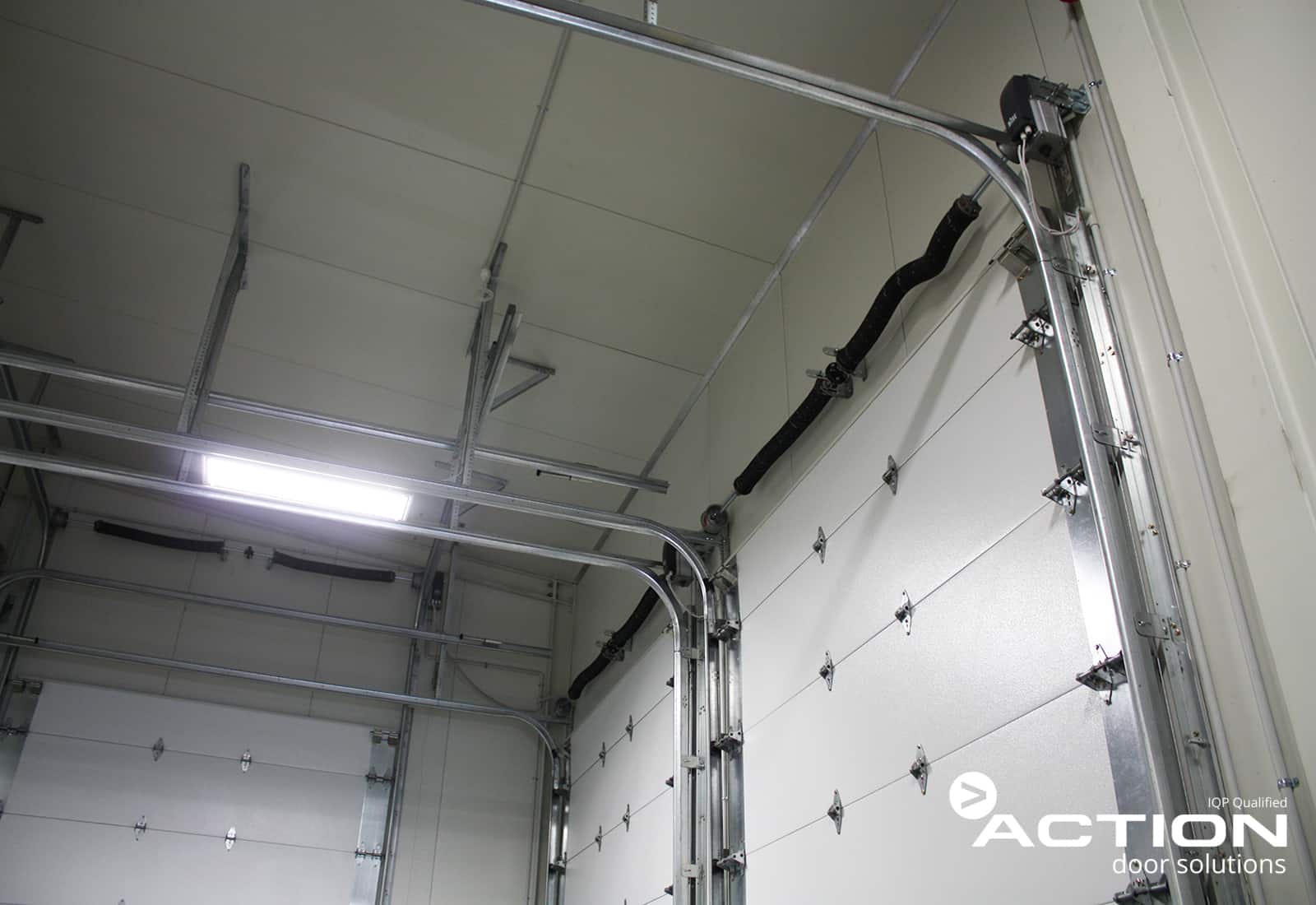

Insulated Sectional Doors

Insulated Sectional doors are an ideal option when thermal efficiency is a concern or requirement. Whether this is cooling or heating this door forms the thermal barrier required while providing quick and easy access to your opening when required

Request a quote

Click below to request a quote

Insulated Sectional Door Brochure

Installation Specifications

Maximum Height: 5.0 metres High

Maximum Width: 5.6 metres Wide

Features/Benefits

Panel Construction

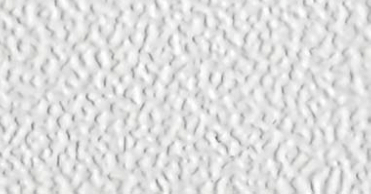

Insulated Panels fabricated from pre-painted, hot-dip galvanized steel, stucco-embossed and rib reinforced

Insulation Thickness/Material

Thickness Options: 40mm or 80mm

Material:  Rigid Polyurethane Insulation Core

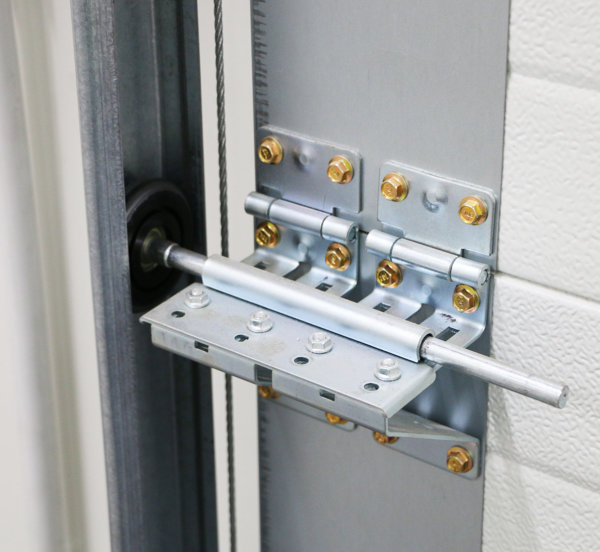

Industrial Hardware

Heavy Duty Tracks & Door Hardware

Window Option

Insulated Sectional Doors have the option of Vision Windows increasing viability for forklifts and pedestrians

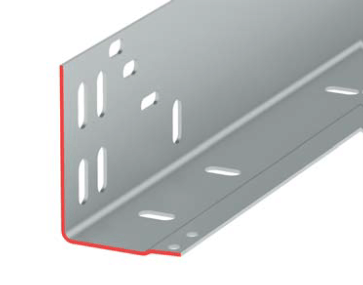

Panel End Caps

1.6mm (16ga) galvanized steel endcaps

Side weather seal

Effective side seals fitted on the vertical mounting angles of the door ensure a tight overlap of both sides of the door panel

Related Products

Dock Levellers & Loading Equipment

Industrial

Vertical Storing Dock Levelers are an ideal Dock option when a superior Contamination prevention or greater energy loss measures are required. The trailer can be parked and the seals deployed before the trailer door are required to be opened. This eliminated the need for the driver to open his trailer or container doors before parking his trailer. Ther vertical dock have a range of safety features and available upgrades to streamline your loading or unloading process. Also due to the dock being vertical storing, you have excellent access to the pit for easy cleaning & maintenance.

Inflatable Dock Seals & Shelters

Industrial

The Air Frame Inflatable Shelter is a versatile and adaptable element barrier designed to seal gaps while allowing in light. The shelter features two vertical air bags to seal the sides
of the trailer and an inflatable header air bag to seal the top, providing full unrestricted access to the rear of the trailer. It inflates after the trailer has docked and deflates before
departure to minimize wear and tear. The system is powered by a 240V ½ HP continuous running motor and blower assembly.

PVC Strip Curtain

Industrial

PVC Strip Curtain is the most cost effective way to temperature control an opening. This product can also be used for vermin and pest control, dust and noise. We offer a large range of sizes, colors and profiles to suit your specific needs. PVC Strip Curtain can be used in temperatures down to -50° and up to 60°. We can supply in 50m Rolls or cut replacement strips for your convenience.

Safety Bollards

Industrial

Protect your investment with our ‘easy to install’ steel bollards.  These are available in a range of finishes to suit your requirements

Bollards are a simple but effective asset protection tool, they are commonly placed at the edges of door openings to protect the door & building from forklifts and other traffic.

“ ”
